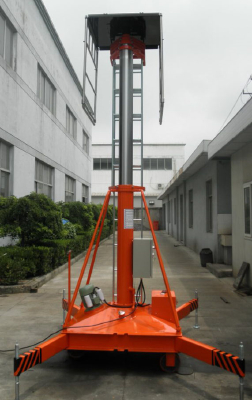

1, sets of cylinder lift with a novel design, small size, beautiful appearance, easy operation and maintenance, stable and smooth, and other advantages.
2, the whole machine by the platform, telescopic oil cylinder, single ladder type or double ladder type anti rotation mechanism, chassis fuel tank, legs, walking wheel, and other components.
3, platform is composed of a telescopic oil cylinder directly lift, when the motor is started, the motor driven gear pump oil, oil through the one-way valve and the electromagnetic channel input oil cylinder, telescopic oil cylinder is gradually rising, when the platform rises to the maximum height, pressure system also reached the rated working pressure.
4, unloading by the relief valve, the hydraulic pressure to maintain a constant working pressure, down the one-way valve pressure, the platform will remain at the maximum height. The platform can stay at any position under the maximum height according to the operation height of the field.
Your cylinder lifting platform specifications:
Cylinder lift size: 1700*1390*2360 (MM) table size: 800*800 (MM). 16, 18, 20, 21, 23, 26 of the model for the GTTY-B type with double ladder type anti turn ladder structure, the above various specifications of the elevator can also provide additional manual pump to achieve the function of hand, electricity. The main structure: the use of cold drawn seamless steel tube 20# and 3mm ~ 40mmQ235 plate electric appliance snd anti turn ladder: cold galvanized steel. Base: manganese steel
To set the scope / lift cylinder:
Set of lift cylinder is widely used in high altitude operation in workshop warehouse maintenance, construction decoration work high above the ground, hall high cleaning, stadium high-altitude lamp maintenance, station lamp maintenance of high-altitude, shopping malls, schools work high above the ground, property area high-altitude operations and maintenance.
